SESAME 5

Advanced Software:
• Smart lock equipped with SesameOS 3
• Free Bluetooth API
• Open Source APP
• Matter compatible
• Connectivity with Touch/Touch Pro: One SESAME can link with two SESAME Touch/Touch Pro units
• Multi-Task function: Multiple devices can simultaneously connect to SESAME via Bluetooth
• Always Connect: Connects via WiFi while searching for Bluetooth (requires separate Hub3)
• Key sharing via QR code
• No login required
• Stable history reflection
• Stable Apple Watch app (compatible with Series 3 and later models running WatchOS 7 or above)
• Widget functionality
• NFC tag support (iOS compatibility: iPhone XS and later models running iOS 13.1 or above)
• Notifications: Smartphone alerts when someone opens or closes the door, monitor family members' return home status
• Remote operation: Manage from distant locations using Hub3 (The original WiFi access point is not supported)
• Connectivity:

Refined Hardware:
• Device thickness: The thickness of the thumb turn portion has been reduced, expanding the range of compatible lock types.
• Color options: Available in Black and Silver.
• Battery life: Over 1 year. Smartphone notification when battery is low (feature to be added in the future)
• Compatible thumb turn rotation angle: Supports multiple rotations of 360° or more
Note: If your lock is NDR/HP40/Push-pull (B5/U1), this SESAME 5 North American/Nordic version is not compatible. Please purchase SESAME 5 or SESAME 5 Pro instead.
• Compatible with various locks: For locks requiring special adapters, we create them using 3D printers. These are shipped separately, even when ordered with SESAME 5 North American/Nordic version. You can directly request adapters for common locks here! If you can't find a matching lock, please contact [email protected] with a photo of your lock.
• More advanced, significantly faster in-house semiconductor (SESAME 5 North American/Nordic version has the same performance as SESAME 5):

セサミ4とセサミ５の指紋の反応スピードを比べてみました😊✨ pic.twitter.com/VmzpNHkBG3

— セサミスマートロック🔑 (@candy_house_jp) June 7, 2023

・As of September 2, 2025, we have changed the color of part of the thumb-turn for the black model.

⚠️The following types of keys will not be able to respond to sesame, so please check before purchasing.

・ Sam -turn with specifications with a specification that does not have a constant lock/unlocking angle that tries to return automatically after unlocking/unlocking.

・ Sam Turn with play

・ Two -step locking -unlocking method (only hard guard type)

・ Thumb turn that rotates after pushing the knob

・ Sam Turn with a lock/unlocking angle of 50 degrees or less

・ Sliding door type up and down slide thumb turn

・If the locking/unlocking angle of the lock you are using exceeds 180 degrees, we recommend using the Remote for locking/unlocking, instead of manually doing it from the inside.

Also, if you are uneasy whether your home or company key is compatible with sesame, please contact us [email protected]

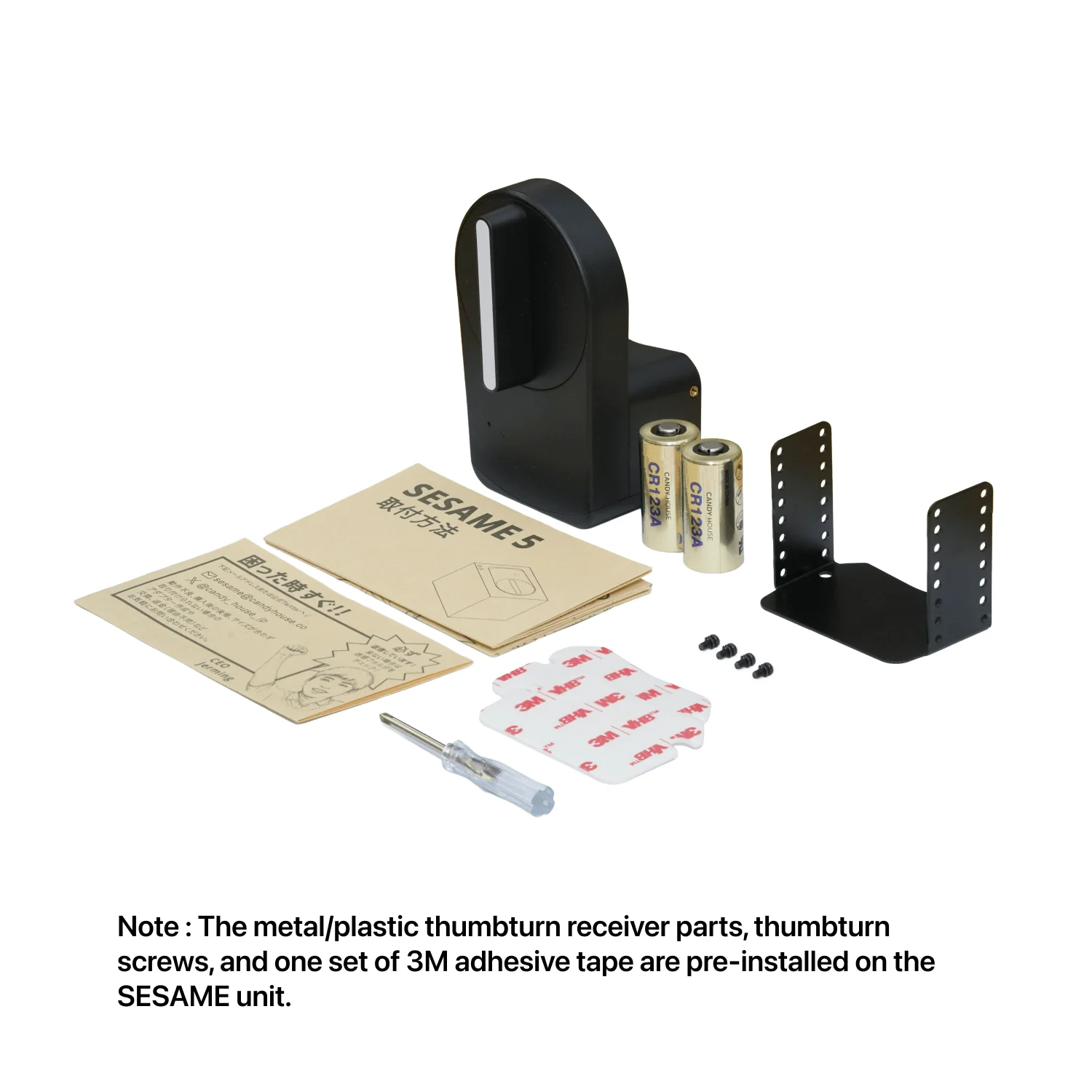

Included Accessories:All necessary tools are included, allowing for highly flexible adjustments to fit various key shapes
• 3M tape for Sesame 5 (3 sets)
• High-performance, high-capacity 3.0V 1800mAh CR123A batteries (2 pieces, 1 set)
• Screwdriver for Sesame 5 (1 piece)
• Metal thumbturn receiver parts (2 pieces, 1 set)
• Plastic thumbturn receiver parts (2 pieces, 1 set)
• Screws for thumbturn (6 pieces, 1 set)
• Metal base adapter (1 piece)
• Screws for metal base adapter (4 pieces, 1 set)
Note: The screws for the thumb turn and metal base adapter are now interchangeable parts.
• User manual (1 book), Warranty card (1 book) (PDF of the original document available here)
